Machines for Advanced Industrial Manufacturing

Cutting Area: 162'“ x 83” x 4” (13.5ft x 6.9ft)
Thickness: Up to 1” on steel, aluminum & Stainless
Bilateral repeatability: 0.002”
Average bilateral position deviation: 0.004”

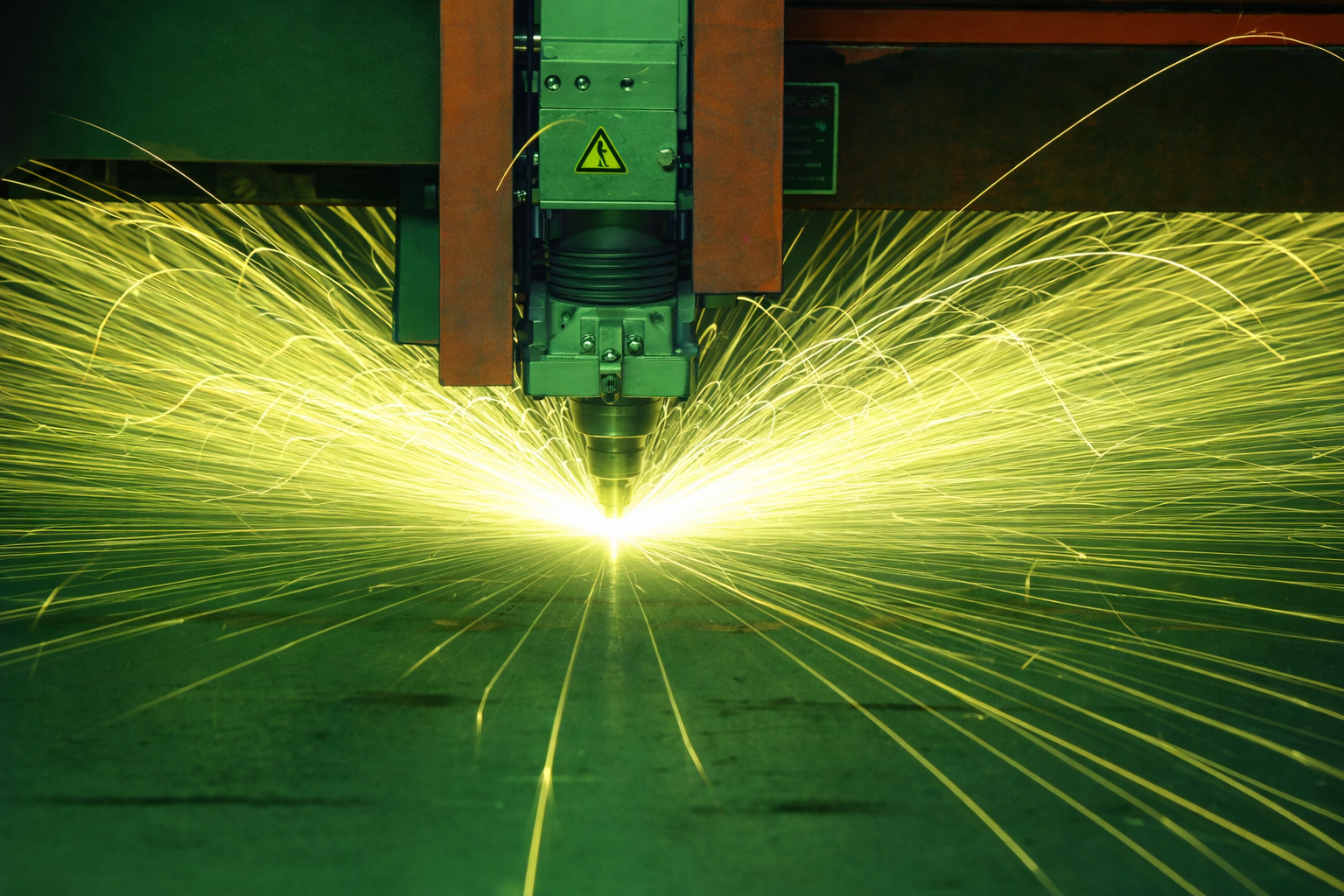

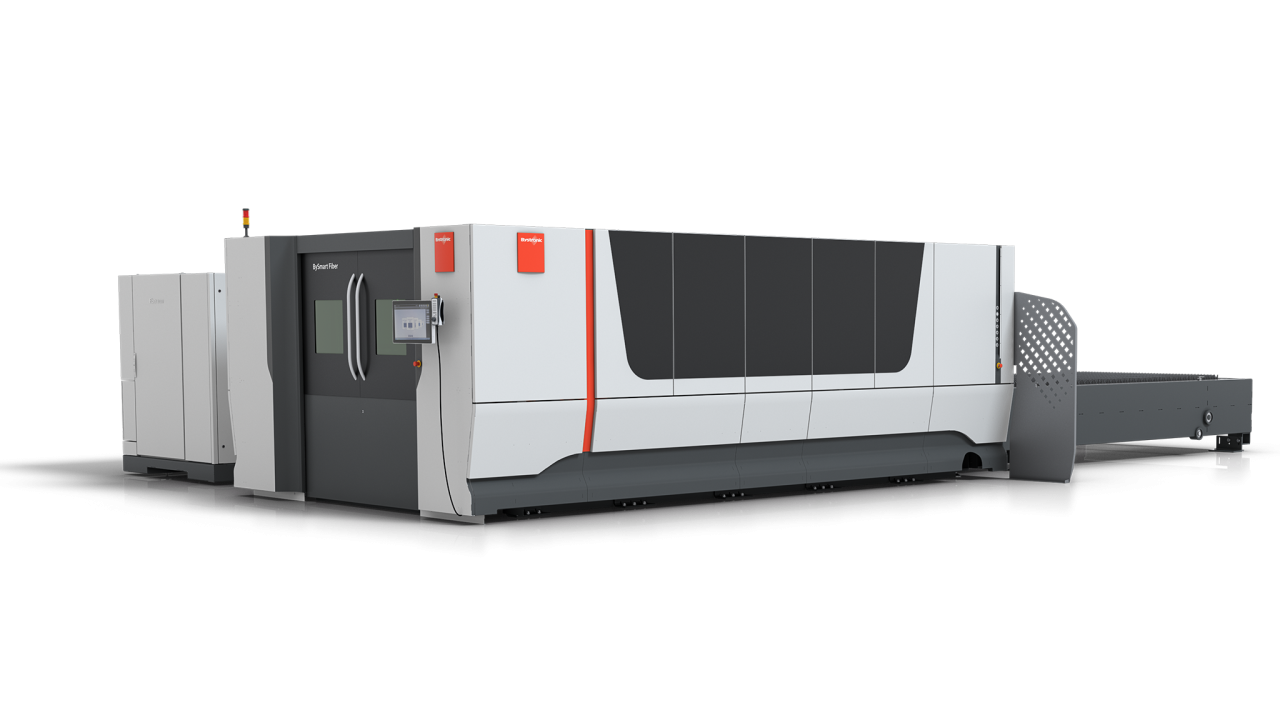

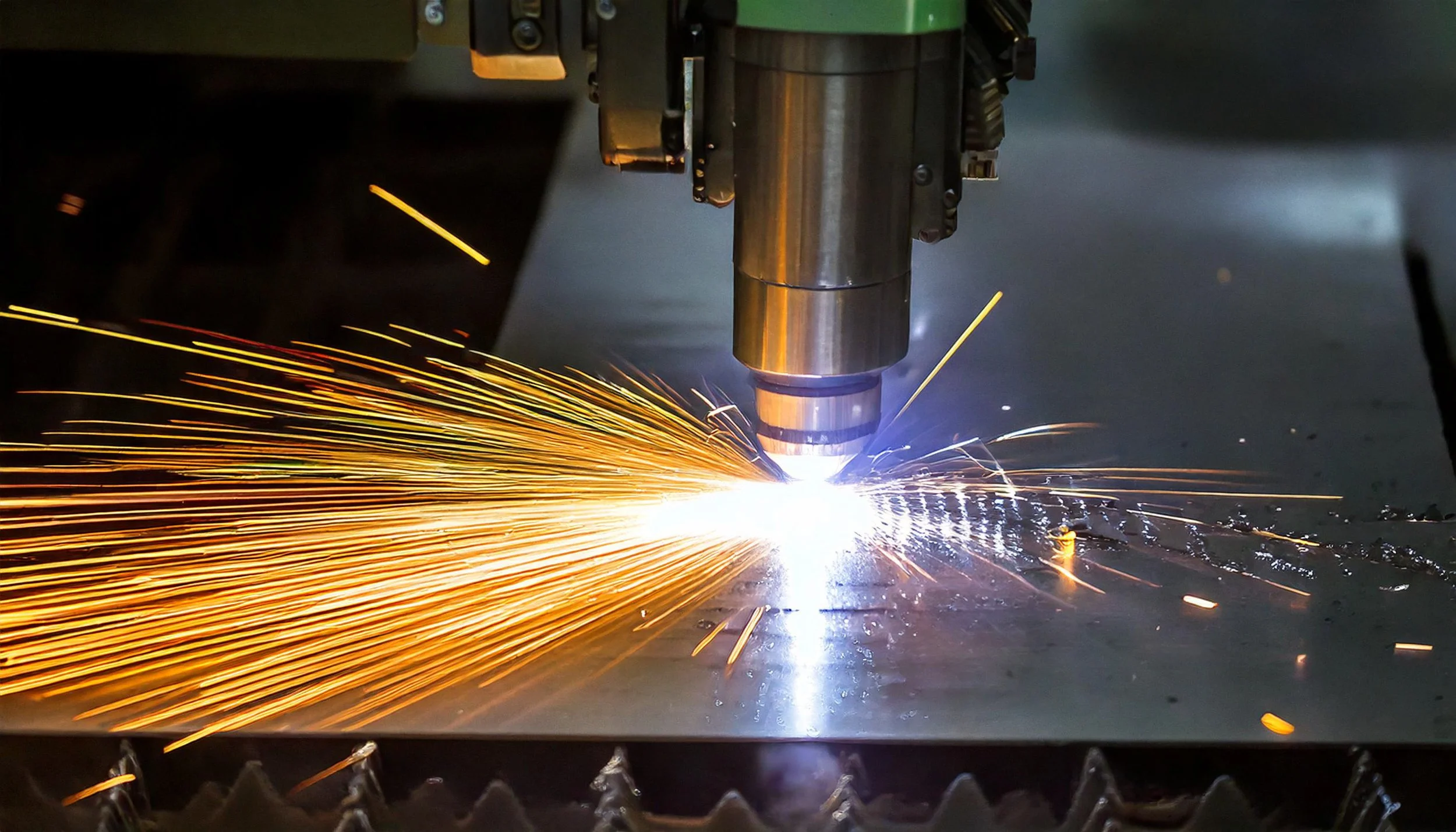

The Bystronic BySmart Fiber 4020 F6000 is a 6kW fiber laser cutting machine designed for large format sheet metal cutting. It's known for its speed, particularly in thin to medium thickness materials. The 6kW laser source offers significant speed advantages, especially when compared to CO2 lasers, and can increase parts output by up to 250% depending on material and thickness

Tonnage: 330 Tons
Bend Length: 161.4” (13.45ft)
Throat: 19.7”

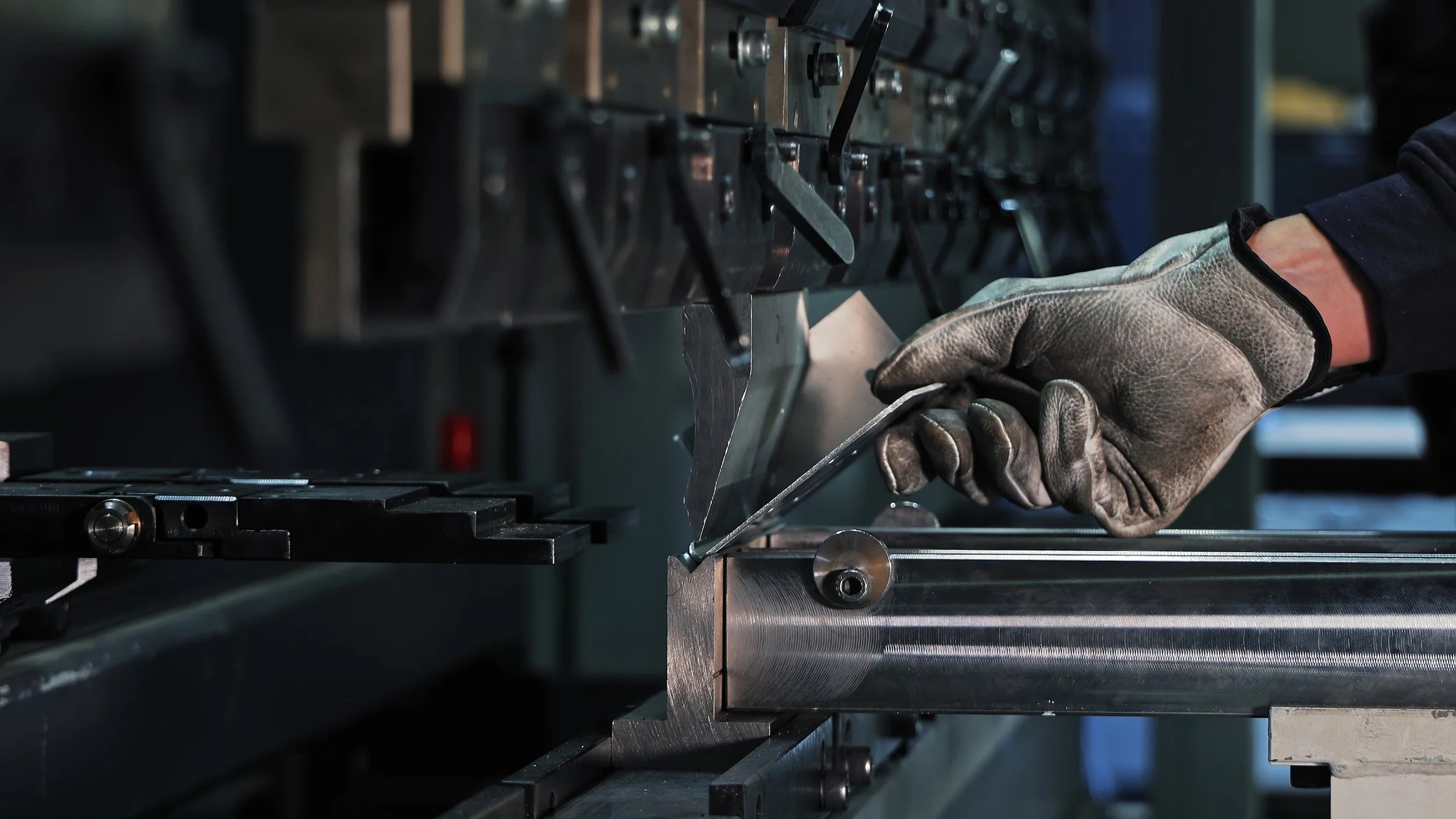

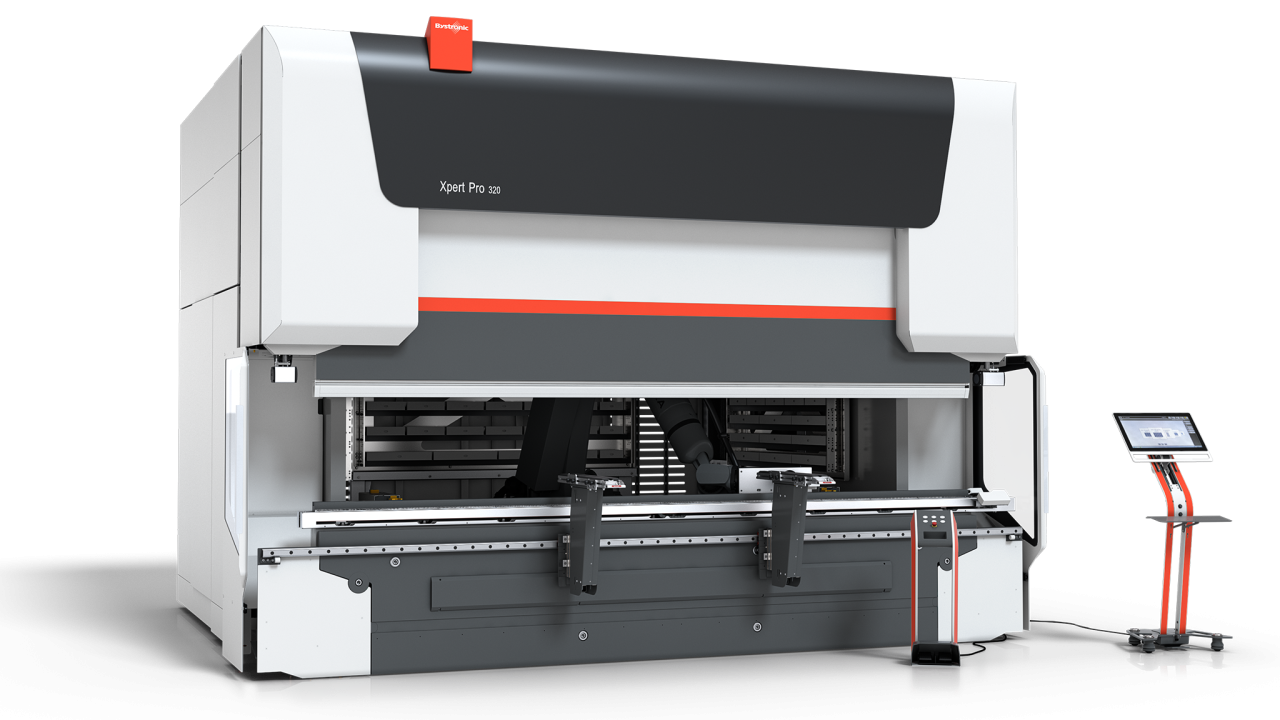

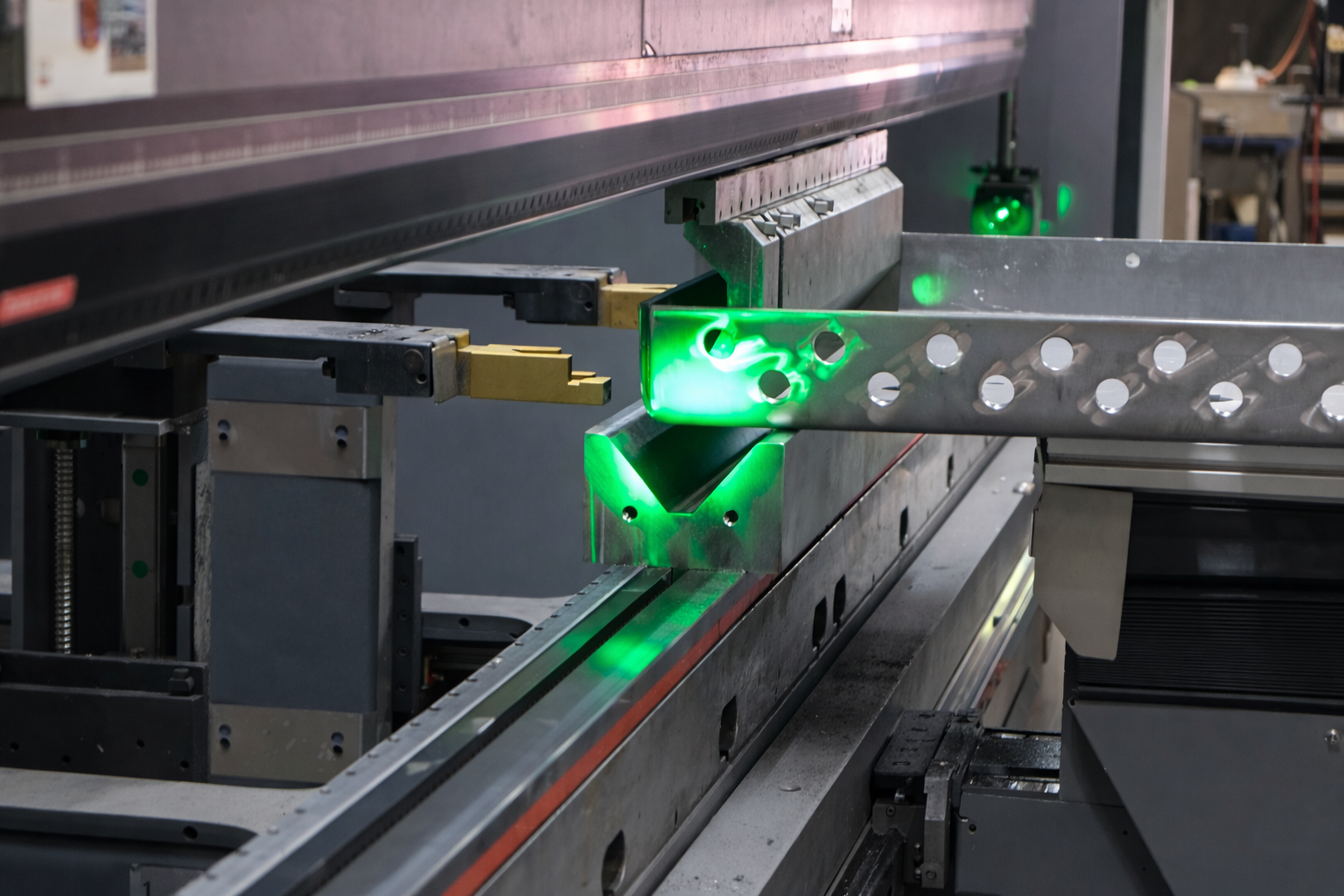

The Bystronic Xpert Pro presents an intuitive and powerful high-performance press brake that sheet metal fabricators can adapt to their requirements. Intelligent assistant functions and patented bending technology ensure consistently high quality – from the first to the last part of the order.

Machining Area: 240” x 72” x 21” (20 ft x 6ft x 1.76ft)
Repeatability Accuracy: X +/- 0.0007”, Y+/- 0.0005”, Z +/- 0.0005”
Position Accuracy: X 0.002”, Y 0.001”, Z 0.001”

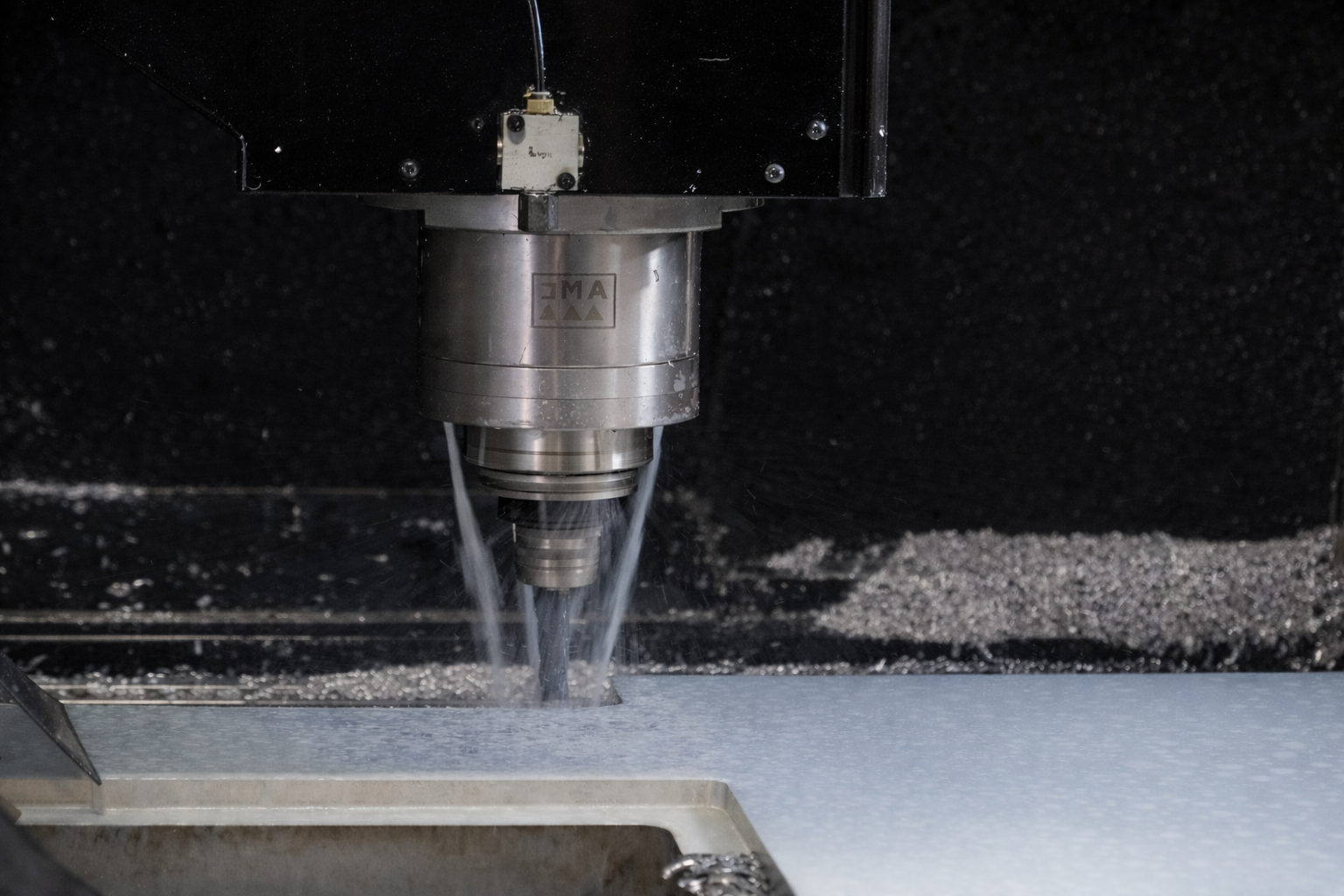

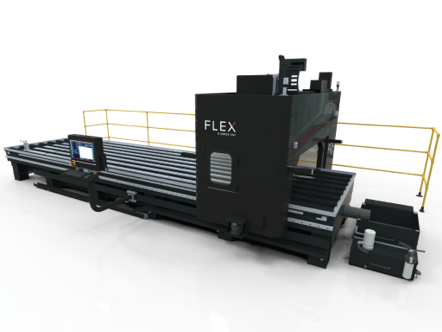

The G-20-06 VMC is constructed with a robust welded frame composed of structural tubes, which enable enhanced vibration absorption while significantly improving rigidity and stability. Additionally, the gantry is fabricated using welded steel plates with reinforcing ribs, further enhancing its rigidity. The included tool changer can accommodate up to 20 different tools, allowing for efficiency in processing work pieces.

Cutting envelope: 156'“ x 78” x 12” (13ft x 6.5ft x 1ft)
Repeatability accuracy: 0.001”

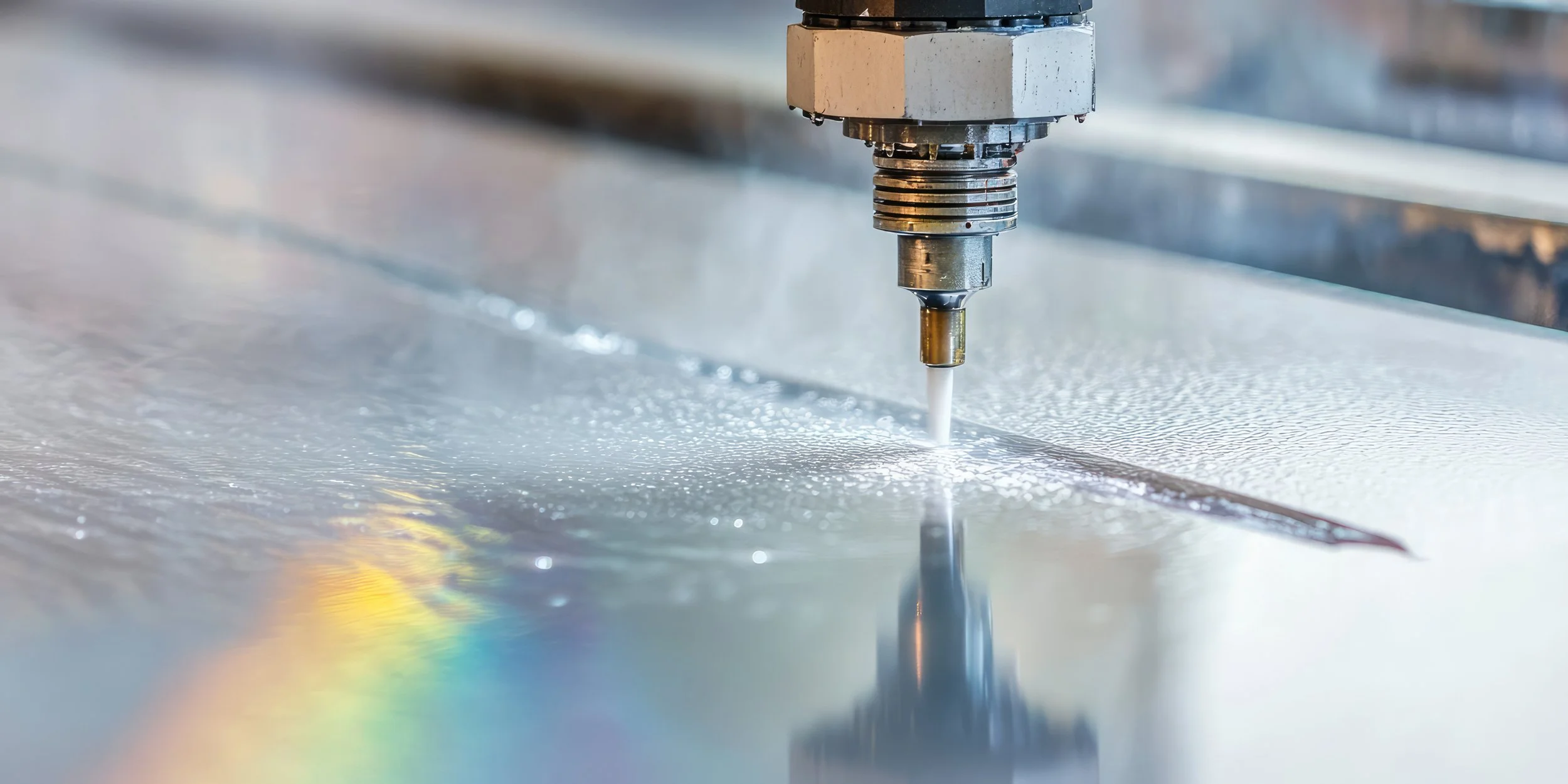

The FLX-Series waterjet delivers exceptional cutting power, engineered for both precision and speed. It tackles intricate jobs effortlessly, maximizing your productivity with a user-friendly design that prioritizes your workflow. Built in the USA, The FLX-Series is a reliable waterjet for your most demanding cutting applications.
